執行器
什么是直線執行器？
直線執行器是液壓和氣動解決方案的更清潔、更高效的替代方案。電動直線執行器將齒輪和滾珠或梯形絲杠的旋轉運動轉換為直線或線性運動，以實現精確和可重復的負載推/拉、升降、旋轉或定位操作。直線執行器通常用于農業機械和設備、醫療設備、工廠自動化、物料搬運等應用。
執行器之間有什么區別？
Thomson提供廣泛的執行器產品，包括直線執行器、精密執行器、步進電機執行器和無桿執行器。
直線執行器廣泛用于各種類型的設備，可以實現過程自動化、代替工人在危險的場合工作、提供遠程控制或減輕繁瑣單調的人工操作。
精密直線執行器設計用于需要更高速度、更高負載、連續工作循環、精確定位和在狹窄區域內靈活集成的應用。
步進電機直線執行器集混合式步進電機和精密梯形絲杠于一身，且外形緊湊，適用于存在外部導軌或需要高設計靈活性的應用。
無桿直線執行器也稱為直線運動系統。點擊這里了解更多信息。
為什么選擇Thomson？
從50多年前制造第一個執行器開始，Thomson一直是市場上值得信賴的先驅，致力于通過開發技術幫助客戶解決問題、提升效率并提高他們所安裝的每個機電直線執行器的價值。
Thomson執行器幾乎免維護，并且不會泄漏液體，易于集成到自動化過程中。除了豐富的設計和應用專業知識外，我們還提供大量的在線資源，包括執行器定型工具、交互式3D CAD模型、專用產品網站、技巧視頻等。

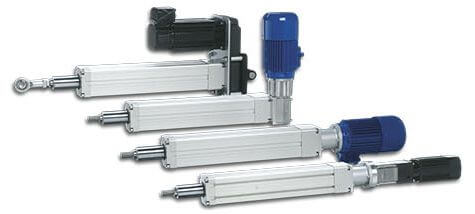

Thomson標準電動推桿由堅固的高質量組件制成，可確保免維護和安全可靠的運行，從而保證長使用壽命和高價值。它們行程長達36 in，速度高達3 in/sec，負載能力高達3600 lbs，滿載下的占空比高達25%。這些電動推桿集成了獨立運行的電機，其旋轉運動會被轉換成線性位移。通過進一步集成印刷電路板，可實現許多控制功能。
特色產品：Electrak XD
- Electrak XD的強大性能足以應對液壓應用，同時相比競爭技術更智能、更小巧、更高效。
- 性能特點包括負載能力高達25,000 N、占空比高達100%、行程長達1200 mm以及速度高達75 mm/s。
- 該型號防護等級高達IP69K（靜態）、IP67（靜態）和IP66（動態），能夠可靠抵御惡劣的條件和侵入。
- 可控性可通過板載控制器增強，如低電平開關、可編程行程末端限位開關、位置反饋、同步和總線系統等。
Thomson precision linear actuators are designed to deliver high performance in applications requiring continuous duty operation. They provide the highest thrust and speed of any electric actuator and allow you to design more compact machinery with maximum throughput. Often chosen as a clean and efficient alternative to fluid power solutions, precision linear actuators draw energy only on demand and operate more quietly than pneumatics.
Browse Thomson Precision Linear Actuators

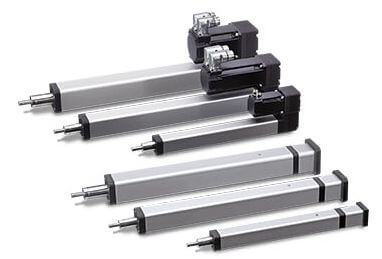

Featured Product: PC Series
- Servo motors are available matched with all models, helping reduce the time spent on sizing and selecting a motor.
- A large, high-precision ball screw assembly allows for unmatched travel life, delivering up to four times more travel distance than comparable actuators.
- Long stroke length provides solution for hard-to-reach places and covers larger areas in scanning, cutting and measuring applications.
- Exceptional power density and high speed.

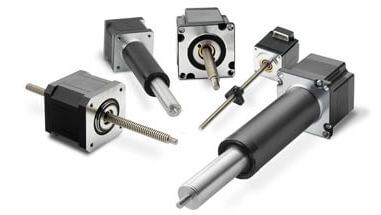

Thomson stepper motor linear actuators combine a hybrid stepper motor and a precision lead screw in one compact envelope, and are offered in three basic configurations – rotating screw (MLS), rotating nut (MLN) and actuator (MLA). Benefits include increased torque density, improved efficiency, reduced noise and our patented Taper-Lock design, which allows for secure, properly aligned connections of the lead screw to the motor shaft.
Browse Thomson Stepper Motor Linear Actuators

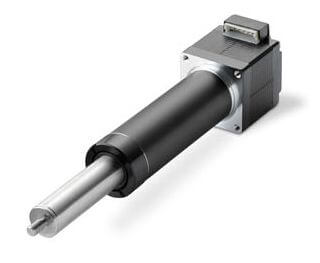

Featured Product: Motorized Lead Screw Actuator
- Fully housed solution with a rotating screw configuration and your choice of end machining.
- Built-in anti-rotation eliminates the need for external guidance.
- Side and moment load capabilities.
- Easy integration into assemblies.
