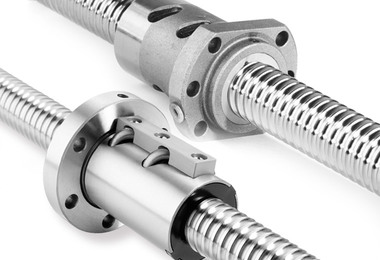

Precision Plus 軋制滾珠絲杠

Precision Plus 軋制滾珠絲杠裝置是可選的最精密度的產品，標準導程精度達±12μm/300mm。這些軋制絲杠裝置為FL式滾珠螺母，根據客戶指定精確預載。這種獨特的螺母設計可為要求最嚴苛的滾珠軋制絲杠應用提供高重復性與高硬度。每個螺母標準配置包括一個集成的Delrin刷子以保護不受削片或其他碎片損壞。

產品介紹

讓 Thomson 幫您做出選擇！

Linear MOTIONEERING^® Ball & Lead Screw Sizing & Selection Tool >

規格:

直徑 (mm.)	導程 (mm.)
直徑 (mm.)	5	10
16	X
20	X
25	X
32	X	X
40	X
50		X
63		X
80		X

Precision Plus 軋制產品概覽

軋制絲杠導程精度達傳統滾珠絲杠的8倍，可立即提高機器的精度
零間隙，可選擇高硬度預載設計，為機器工具、物料搬運系統、電子部件插件系統等等提供精確定位與可重復性
歌特拱滾珠槽線外形可延長服務壽命，優化預載裝置的硬度
軋制絲杠最大導程誤差 - 3級 - ±12µm/300mm (.0005"/英尺)
集成的刷子與法蘭可幫助系統進行清潔及方便安裝
代替昂貴的液壓及氣動系統，可達到最佳的效率與成本節約。
軋制絲杠具最可靠的系統設計，可預見的服務壽命

手冊

High-Load Ball Screws	391 KB	Email
High-Load Ball Screws	370 KB	Email
High-Load Ball Screws	395 KB	Email

手冊

Assembly and maintenance instructions KGT/TGT	504 KB	Email
Assembly and maintenance instructions KGT/TGT	965 KB	Email
Assembly and maintenance instructions KGT/TGT	485 KB	Email
Assembly and maintenance instructions KGT/TGT	461 KB	Email
Assembly and maintenance instructions KGT/TGT	483 KB	Email

Please accept our apologies.

CAD models for Precision Plus Ground Metric Ball screws are not available online right now.

Our web team has been notified of the error and will get this fixed soon. For immediate assistance during regular business hours, contact Thomson Customer Support. Or, submit your contact information below and someone will get back to you asap.
